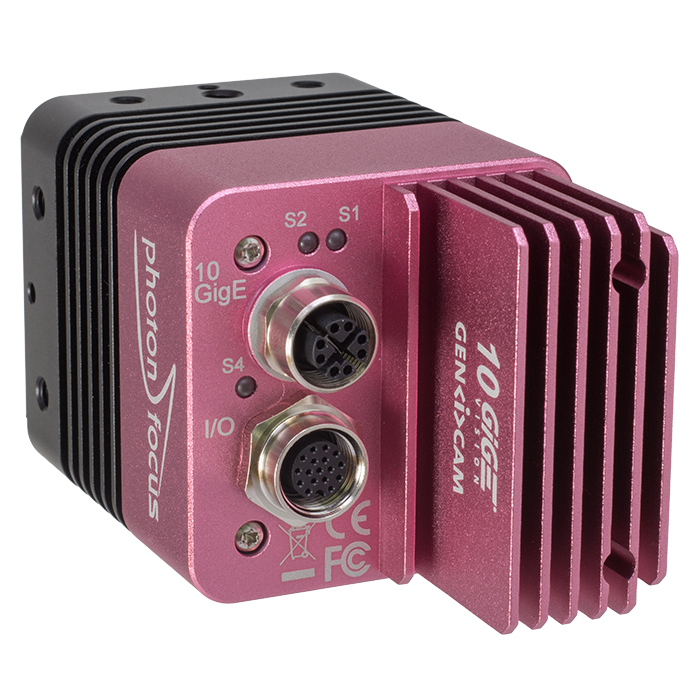

photonSPECTRAL | UV camera | BW

MV4-D1280U-H02-GT

Photonfocus, UV, 1", 1280 x 1024, 28fps/140fps, 10GigE

Part name	Description	Article No.
MV4-D1280-H02-GT	BW model	609030.012	request offer

Description
Data
Features
Downloads
Modules
Accessories

High-end product: UV camera with CMOS BSI technology and global shutter. It features an excellent quantum efficiency of up to 85% from 150nm–1000nm and a frame rate of 140 fps at full resolution of 1280 x 1024 px. The MV4-D1280U-H02-GT camera is primarily designed for UV applications. Additionally, it can also be used in the visible and NIR (near infrared) range thanks to its enormous spectrum.

The MV4-D1280U-H02-GT shows a breakthrough performance enabled by a hermetically sealed image sensor package, delivering long-term stability under high-intensity UV radiation. An advanced sapphire sensor cover glass ensures exceptional full-spectrum performance.

The 10GigE Vision interface ensures high-speed data transfer and allows cable lengths of up to 100m. The C-mount connection allows the selection of cost-effective lenses for a wide range of applications such as laser profilometry, pantograph monitoring, wafer inspection and UV laser/LED triangulation technology for transparent materials. The robust MV4 series and its modular concept make the camera the optimal basis for customer-specific adaptations and embedded solutions.

Ask us to customize this camera exactly to your needs! sales(at)photonfocus.com

Sensor:	Photonfocus, UV
Frame rate:	28fps/140fps
Optical format:	1"
Lens mount:	C-Mount
Sensor Resolution:	1280 x 1024
Pixel size:	7.4μm x 7.4μm
I/O Input:	4x Isolated inputs or shaft encoder A, B, Z, Y interface (RS422, TTL, D-HTL, HTL)
I/O Output:	3x Isolated outputs (2x open drain, 1x TTL highspeed)
Dimensions:	59 x 59 x 102.5mm³

28fps @ 12Bit full format with high-precision mode
up to 140fps @ 10Bit with 10 GigE
Linear mode
Extended spectral range of 150nm to 1000nm
Hermetically sealed image sensor package for breakthrough stability under intense UV radiation
Sapphire sensor cover glass delivers exceptional full spectrum performance
Configurable region of interest (ROI)
Two crosshairs overlays for measurements and adjustments
Temperature monitoring of camera
Low trigger delay and low trigger jitter
Extended trigger input and strobe output functionality
4x Isolated inputs or shaft encoder A, B, Z, Y interface (RS422, TTL, D-HTL, HTL)
3x Isolated outputs (2x open drain, 1x TTL highspeed)

Datasheet

MV4-D1280U-H02-GT

Manual	Revision	Doc-ID
MV4-D1280U-H02-GT	V1.0	MAN093

Software	Version
PFSDK Win64	2025.1.0
This installer contains read more... Link: Changelog Supported Operating Systems: - Win8, Win10, Win11 GigE Cameras: - PFSDK and PFViewer (GUI) with Doublerate support - SDK examples and documentation - C# and Python (2.7, 3.x) wrappers - Support of polarized Cameras 3D Cameras: - PF3DLib and PFViewer (GUI) - SDK examples
PFSDK Linux64	2025.1.0
This installer contains read more... Supported Operating Systems: - Ubuntu 18.04 LTS, 20.4 LTS, 22.04 LTS GigE Cameras: - PFSDK - SDK examples and documentation

Ask us to customize this camera exactly to your needs!
We’re available for standard and indvidual OEM camera modules.
Contact us at sales(at)photonfocus.com

Cable T/S MV0/MV2, Binder, 4 pin (trigger)

Trigger/strobe cable with Binder connector for MV0/MV2

Cable P MV2, Binder, 3 Pin (Power)

Power cable with Binder connector for MV2
